It is the mission of CIMS to remain at the absolute forefront of AOI Technology. Besides the comprehensive range of AOI products for all markets, CIMS offers a range of special products.

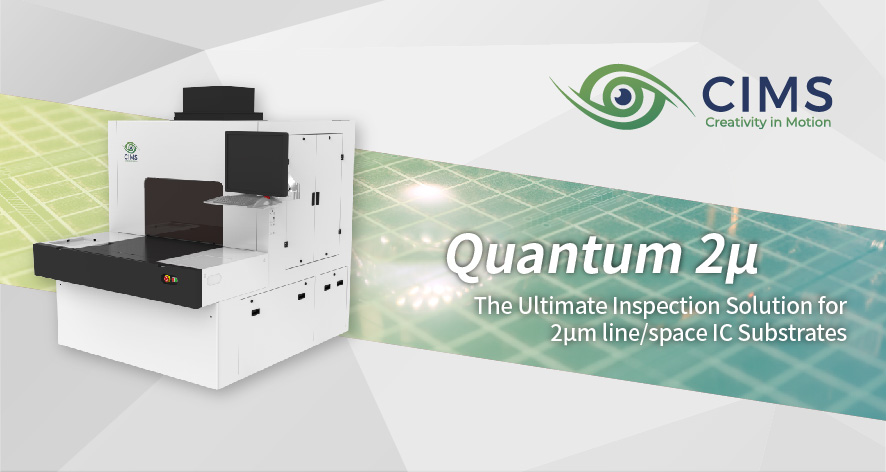

Quantum 2µ – the Ultimate Inspection Solution for 2 µm line/space IC Substrates

CIMS Quantum 2µ AOI is a revolutionary inspection solution for advanced IC substrates with lines and spaces as small as 2 µm. This system features submicron optical resolutions and incorporates cutting-edge technologies in illumination, image acquisition and processing, algorithms, and AI.
Quantum 2µ is a new family of CIMS products designed for inspection of advanced products requiring ultra-high resolutions, stable image acquisition, superior detection, and low false calls rate.
This system also includes Spark 4.0, CIMS’s latest generation of inspection engine with enhanced inspection and metrology capabilities, which represents a significant step forward and a new milestone in CIMS’s technological leadership in the industry.

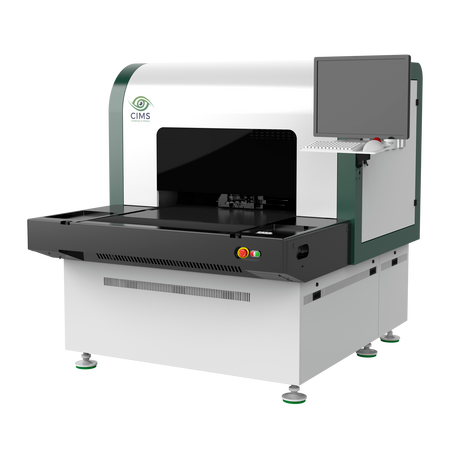

CIMS Galaxy R2R
Galaxy R2R 15μm is designed to support roll-to-roll (R2R) manufacturing of flex and rigid-flex PCB. It is capable to scan down to 15 µm line/space width technology.The system’s state of the art optical technology Microlight™ Gen II provides optimal light coverage in order to be able to meet the most rigorous detection requirements. Optimized performance is achieved by combining superior image quality with customizable detection algorithms.
Equipped with the state-of-the-art image acquisition and advanced software capabilities, the Galaxy product family is renown for its exceptional detection achieved with lowest possible false calls rate.
Galaxy Flex 15μ is powered by Spark™ – an innovative cross-platform detection engine.

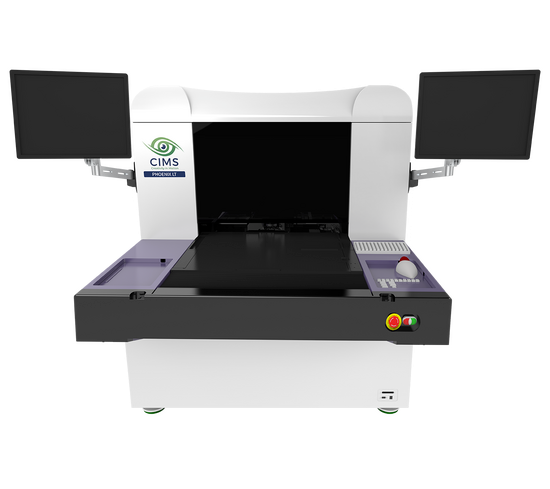

CIMS Phoenix LT (Large Table)

Phoenix LT is designed for inspection of large panel of up to 36″ x 42″ (914 mm x 1,067 mm).
It is capable to scan down to 40 µm line/space width technology and lower line space of 15 µm in designated area
It can also come as bespoke system for length agnostic Flex R2R PCB designs.
Contact CIMS and or Adeon Technologies BV for more information.
Metrology Options ==> Metrology Options ==> available for all systems (Note: 3DH & 3DP not available for Phoenix LT)
