CIMS AOI for MSAP and IC Substrates


mSAP (Modified Semi Additive Process) supports ongoing development of manufacturing finer and more compact PCB product in order to enable higher-frequency signals through reliable fine feature (tracks) structures.

market ics 01IC Substrate technology serves as a connector between IC chip and the PCB. It is, in effect, a highly miniaturized version of a printed circuit board itself. In other words, IC Substrates bridge the nano-scale world of a semiconductor device (IC) and the micron-scale of a PCB. Besides the mechanical support and protection for the chip, IC Substrates are also required for heat dissipation as well as signal and power distribution.

CIMS offers series of AOI and AVI solutions for manufacturers producing wide variety of IC Substrates. Our Galaxy AOI and Capricorn AVI systems are designed to inspect even the most advanced IC Substrate products with down to 4 micron line and space widths.

CIMS Galaxy AOI for IC-Substrate inspection (mSAP technology)

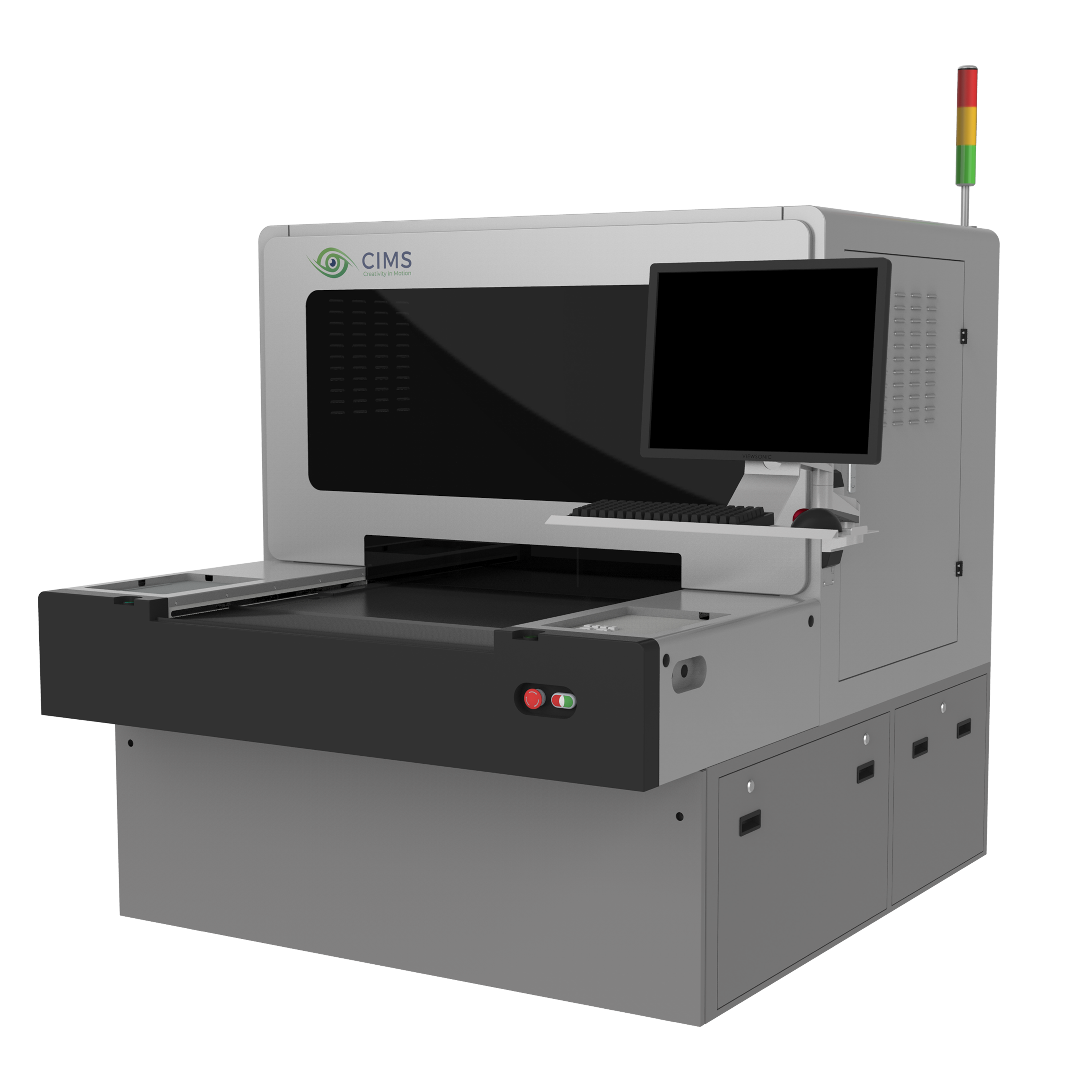

Galaxy Cx series 300x300 2
Galaxy Cx4µm capable to scan down to 4 µm line/space width technology


Galaxy Cx5µm  capable to scan down to 5 µm line/space width technology

Galaxy Cx7μm capable to scan down to 7 µm line/space width technology

Galaxy Cx10μm capable to scan down to 10 µm line/space width technology

Galaxy Cx15μm capable to scan down to 15 µm line/space width technology



Metrology options ==>  available for all systems



Off-Line Verification and Repair stations:

3 VVR ICS png 1

VVR - Hybrid Verification & Repair Station

 Ideal solution when Galaxy AOI is equipped with automatic Loader/Unloader;
 VVR, CIMS hybrid-mode verification station that combines virtual and physical
 verification within a single workstation. VVR for MLB is optimized for verification
 matching to the AOI system line/space width technology.



11 VVR png

 AI-powered Hybrid Verification Systems

AIVR, CIMS AI-powered verification station that combines virtual and physical verification
within a single workstation. AIVR is designed to support high volume manufacturing of HDI and multi-layer PCB and optimized for verification to line/space technology matching the AOI.

AI inside
