A full and comprehensive range of Wet Process Systems are available from WISE
Pictures are only an example
Range of Equipment:
- CHEMSTAR: Modules for Chemical Cleaning and Micro-Etch lines of inner-layer and outer-layer before dry film lamination and soldermask coating

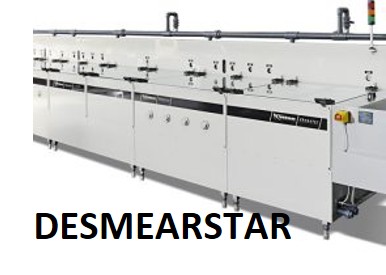

- DESMEARSTAR: Modular series for desmearing line

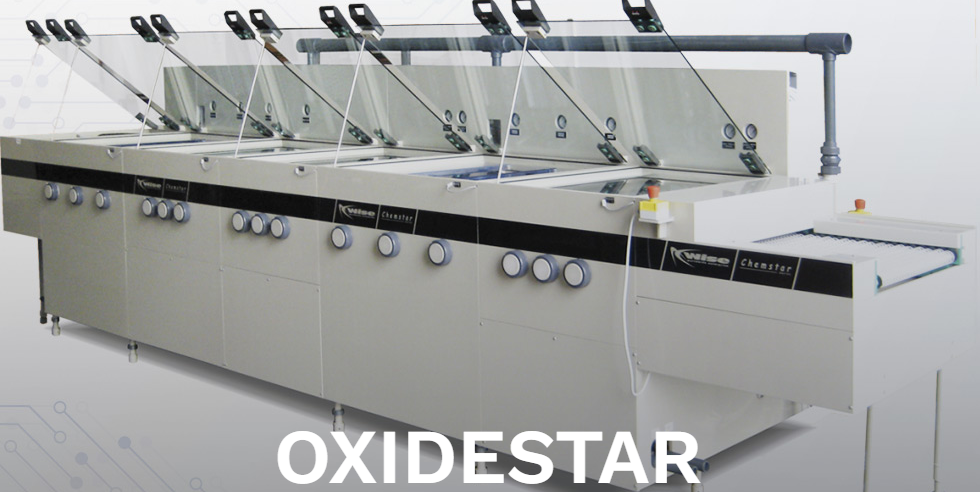

- OXIDESTAR Oxide Replacement process lines
- PLATESTAR: PP and Stainless Steel AISI 316 Modules for Direct Plating & Electroless processes lines for though hole, blind via and dielectrics

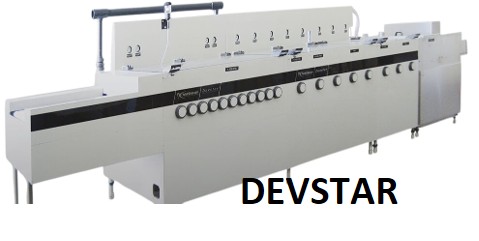

- DEVSTAR development line for alkaline dry-films and liquid photosensitive imaging film
- ETCHSTAR Alkaline or acid etching or FeCl3 etching lines

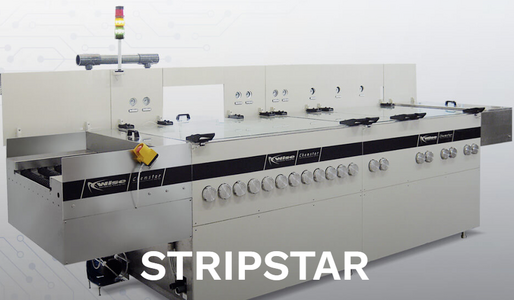

- STRIPSTAR: Modular machine for stripping alkaline dry-films and liquid photosensitive imaging film
- SOLDERSTAR: Soldermask developping lines
- DEV-ULTRAFLEX: Developing machine for alkaline and acid solution on Ultraflex PCB's production
- STRIP-ULTRAFLEX: Stripping machine for dry films on Ultrafelx PCB's production
- SOLDER-ULTRAFLEX: Developing machine for solder-mask process on Ultraflex PCB's production
- CHEM-ULTRAFLEX: Modular PP or Stainless Steel series for chemical wet process line on Ultraflex PCB's production

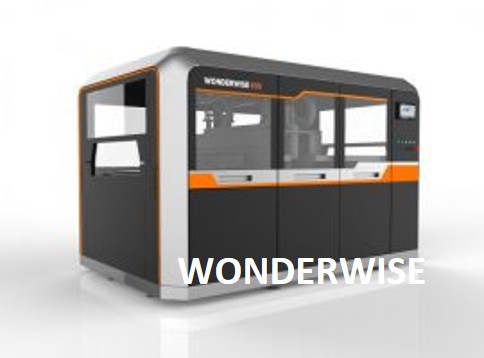

- WONDERWISE: Atmospheric Plasma machine for the horizontal copper surface preparation
