Add-On Equipment


Turn-Key Plasma for PCB Manufacturing

Adeon provides a full and comprehensive line of every required Add-On equipment:

  • Boffotto Plasma systems delivered by Adeon includes the possibility of a True Turn-Key installation;
  • All additional required components and Accessories like the Vacuum Pump & Blower, N2 Generator, Water2Water Heat Exchange or Chiller,  FumeScrubber & Flexframes are available;
  • With >25 years of experience in Plasma for PCB manufacturing we have carefully  (co) developed all these Accessories together with leading quality European Suppliers;
  • Together with our knowledge of every typical Process requirement & Recipes, Plasma has become a straight forward and extremely predictable process for PCB manufacturers;

N2 Generators:

  • Avilo N2Nitrogen used as Process gas is only required at a minimum volume during the plasma process;
  • As process gas it is required to have a high purity at 99.95%, the purging of the vacuum pump is achieved with a lower purity N2 of 99.5%;
  • Our N2 Generators (made in The Netherlands), provide the most cost-, and process effective solutions;
  • Adeon can supply different models based on the requirements;
  • It enables a low cost of ownership and maintenance.

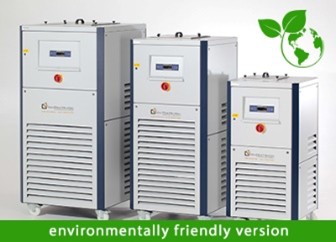

Water2Water Heat Exchange:

  • CoolingThe most cost effective and efficient way to enable the cooling of the closed loop cooling water inside the Plasma line;
  • Through a solid partnership for over 15 years with a leading German company;
  • Available in a variety of different capacities, depending on customer requirement;
  • The closed loop system is connected with the factory cooling water of the customer;
  • Enabling high control, adding to the highest uniformity within 5 degrees Celcius.;
  • Environmentally friendly.

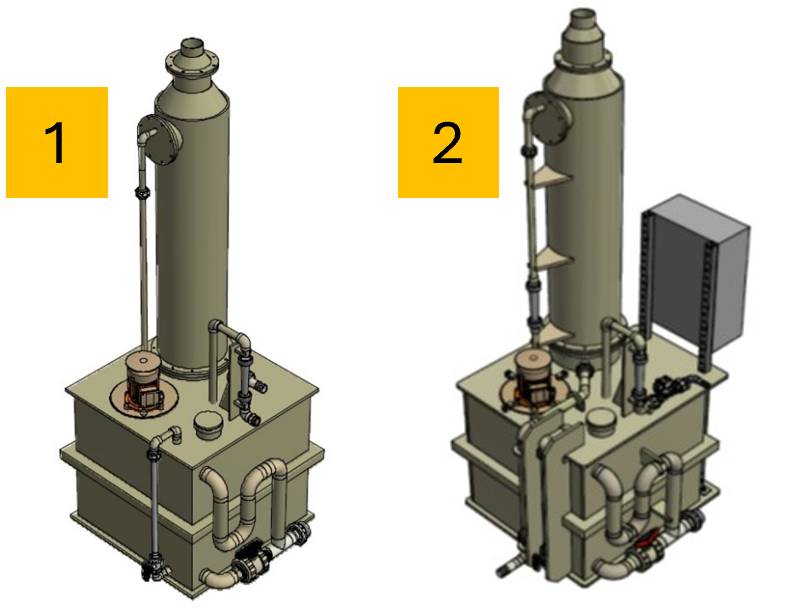

Fume Scrubber:

  • scrubbersEffluent scrubber;
  • System for removal of water-soluble components from a gaseous effluent.
  • Water replenishment
  • Water circulation pump, 0.55 kW, 400V, 3ph.
  • System dimensions : 1000mm (L) x 1000mm (B) x 2750mm (H)
  • Available as integrated system (1) to the Boffotto Plasma or with its own integrated Control Cabinet (2).

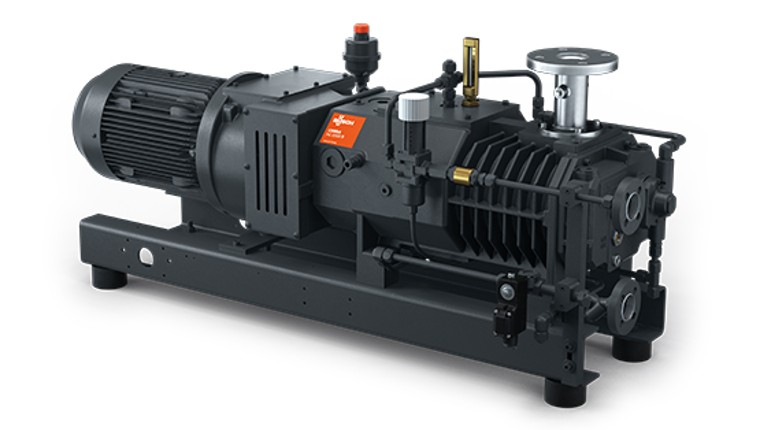

Vacuum Pump & Blower:

  • Busch pompThe Vacuum Pump & Blower package comes as integral part of any delivery with a Boffotto Plasma system;
  • These are so called Dry Pumps, which has eliminated the regular consumption of the so called synthetic "Fombling Oil";
  • We offer a range of different industry standard brands from Busch & Edwards at choice of the customer;
  • Adeon offeres optionally a Rental Replacement of the Pump and Blower in case these require off site refurbishment;
