P15V-M


Mid- to High Volume ==>> Fast Processing High Volume, Fast Processing

  • BoffottoAvailable in various configurations with:
  • 7 Cells;
  • 9 Cells - field upgradeable to 15 Cells;
  • 15 Cells;
  • 16 Cell Systems;



  • Cell Size: 1118 * 660mm (44 * 26") (Larger on request)
  • Multiple Panel loading per Cell
  • Adeon customised Flexframes for material with thickness >0.025mm - optional

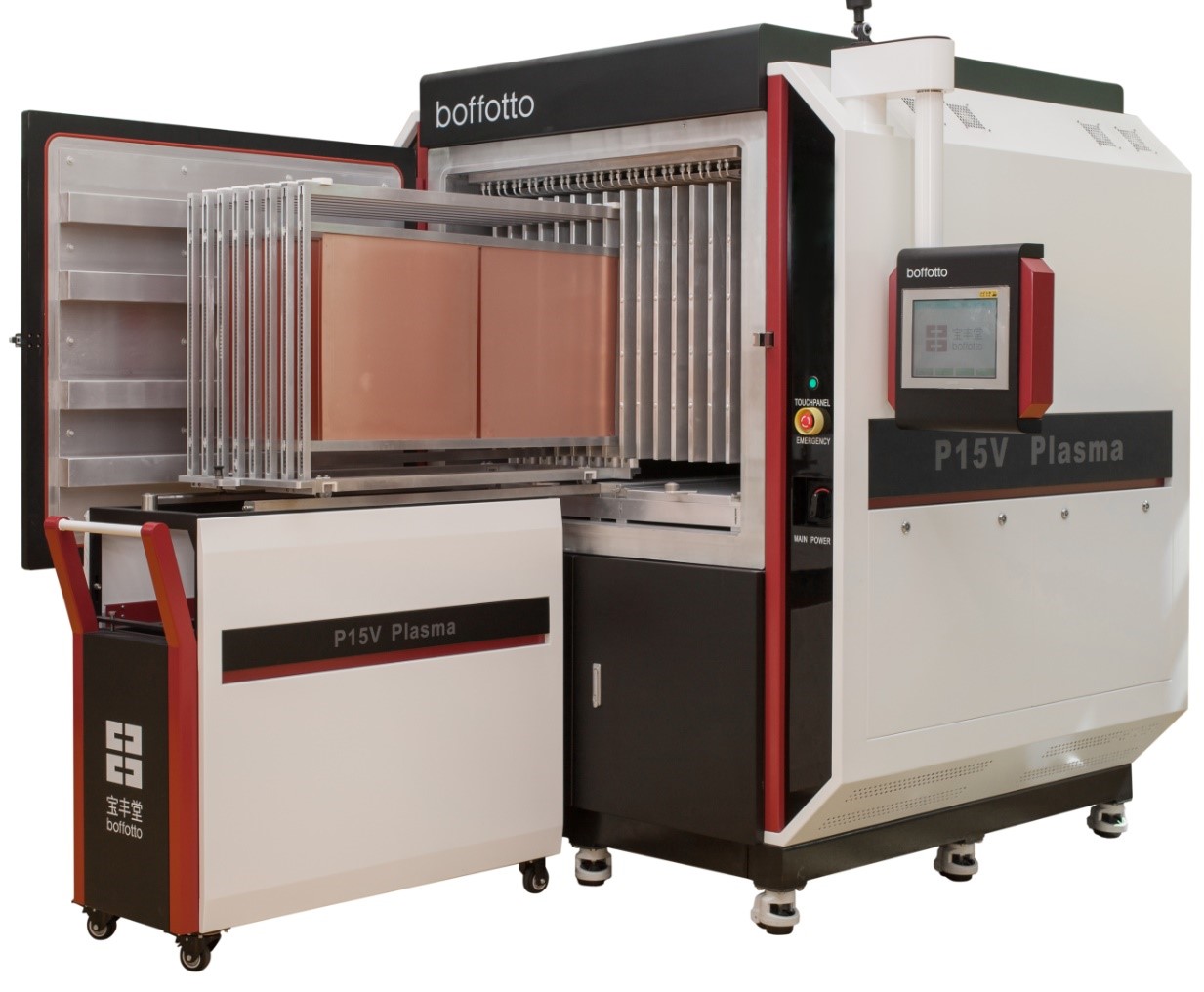

  • The P15V-M system platform is completely self-contained, requiring minimal floor space. The vacuum system, plasma chamber, control electronics, and 40 kHz power supply are housed in a single enclosure. Full front and rear access allows for convenient service to all interior components. The pump is positioned on rollers for easy removal. No side access is required allowing for even greater floor space savings.
  • The P15V-M system incorporates the best of Boffotto's market leading technology combined with novel application specific technology development based on our greater than 20 years of experience. Through extensive research and development, the P15V-M system presents unique vacuum and gas flow technology, new electrode designs, and superior temperature management. The careful balance of these critical design elements and process recipe parameters delivers a system that creates the most uniform PCB treatment for key applications like desmear and landing pad cleaning.
  • All our P15V system's superior performance capabilities are complemented by very attractive low-cost-of-ownership aspects. The system features a very compact and service-friendly design. The vertical loading concept and the use of easy loading carts minimizes any idle time which generates high levels of productivity. The fast vacuum pump down and greatly enhanced process cycle times further add to the throughput and productivity of the system.
  • Equipped with a touch-screen PC Operator Interface, the P15V-M system provides a wide breadth of control capability and data collection. Unlimited recipes can be stored for easy switching of plasma processes from batch to batch. Password protection ensures that no unauthorized entries can be made.

Advantages:

  • High throughput of HDI, flexible and rigid panels for maximum production flexibility;
  • Accommodates larger panel sizes within a small footprint to consume minimal floor space;
  • Faster units per hour (UPH) processing to meet today's demanding manufacturing schedules;
  • Low CF4 gas consumption for desmear applications contributes to the lowest cost of ownership in its class;
  • Patented system technologies produce superior process uniformity at high throughputs;
  • Easy and Fast Handling of Trolleys and Racks.

Machine Features:

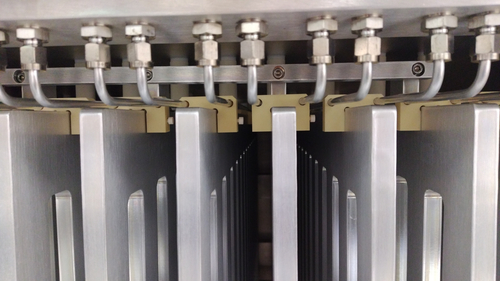

  • 241127 ElectrodesAluminium Chamber Construction - Friction Welded for Long-Life durabality;
  • Real-Time Temperature Controlled (highest quality aluminium) Electrodes (highest quality aluminium) with high efficiency watercooling;
  • Double Gas Line per Cell for maximum uniform distribution along each side of the panels;
  • Oxygen Service DRY Vacuum Pump and Blower Package (Multiple Vacuum Pump brands at customer preference);
  • PE II - 10,000 Watt, 40 KHz RF generator with automated tuning network;
  • Gas Control of up to 5 Mass Flow Controllers with low gas alarms;
  • Optimized gas consumption for cost-effective use of gasses such as CF4;
  • Linear Gas Extraction for highest uniformity;
  • Integrated CE compliant H2 safety control box with dedicated MF Controller and dedicated Gas-Line- optional;
  • Multiple Rack Assemblies for optimized loading of Rigid and Flex Panels;
  • Fully Integrated High Resolution Touch Screen;
  • No hazardous waste disposal;
  • Full Traceability of Process  due to comprehensive Process Parameters Logging - Industry 4.0, 5.0, Smart manufacturing.

Options:

  • Wide Range of Frames available for easy and secure Flex Panel loading & processing;
  • Expandable with dedicated H2 MF Control, Gasline & Integrated Safety box.
