P06H

Prototype & Low Volume ==>> Fast Processing

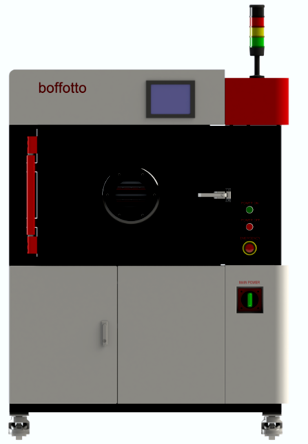

  • P06HThe P06H platform is completely self-contained, requiring minimal floor space. The vacuum system, plasma chamber, control electronics, and 40 kHz power supply are housed in a single enclosure. The pump is positioned on rollers for easy removal. No side access is required allowing for even greater floor space savings.
  • The P06H offers 6 Cells horizontal. The panels are guided in a retractable frame and in which the panels are manually placed. It is also possible to use the customised Adeon Flexframes for Flex & Rigid-Fex applications.
  • The P06H system incorporates the best of Boffotto's market leading technology combined with novel application specific technology development based on our greater than 20 years of experience. Through extensive research and development, the P06H system presents unique vacuum and gas flow technology, new electrode designs, and superior temperature management. The careful balance of these critical design elements and process recipe parameters delivers a system that creates the most uniform PCB treatment for key applications like desmear and landing pad cleaning.
  • Like its larger family members the system's superior performance capabilities are complemented by very attractive low-cost-of-ownership aspects. The system features a very compact and service-friendly design. The vertical loading concept and the use of easy loading carts minimizes any idle time which generates high levels of productivity. The fast vacuum pump down and greatly enhanced process cycle times further add to the throughput and productivity of the system.
  • Equipped with a touch-screen PC Operator Interface, the P06H system provides a wide breadth of control capability and data collection. Unlimited recipes can be stored for easy switching of plasma processes from batch to batch. Password protection ensures that no unauthorized entries can be made.

Advantages:

  • Very small footprint to consume minimal floor space;
  • Faster units per hour (UPH) processing to meet today's demanding manufacturing schedules;
  • Very low CF4 gas consumption for desmear applications contributes to the lowest cost of ownership in its class;
  • Patented system technologies produce superior process uniformity at high throughputs.

Machine Features:

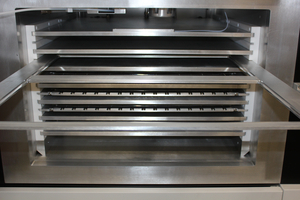

  • IMG 3156Aluminium Chamber Construction;
  • Vacuum Chamber: 375L;
  • Real-Time Temperature Controlled Electrodes;
  • Oxygen Service DRY Pumping Package;
  • PE II - 5,000 Watt, 40 KHz RF generator with automated tuning network;
  • Gas Control of up to 4 Mass Flow Controllers with low gas alarms;
  • Optimized gas consumption for cost-effective use of gasses such as CF4;
  • Multiple Panel Clamping Assemblies for optimized loading of Rigid and Flex Panels;
  • Fully Integrated High Resolution Touch Screen;
  • No hazardous waste disposal;
  • Full Traceability of Process  due to comprehensive Process Parameters Logging - Industry 4.0, 5.0, Smart manufacturing.

Options:

  • Wide Range of Frames available for easy and secure Flex Panel loading & processing
