Dynachem ML-3224

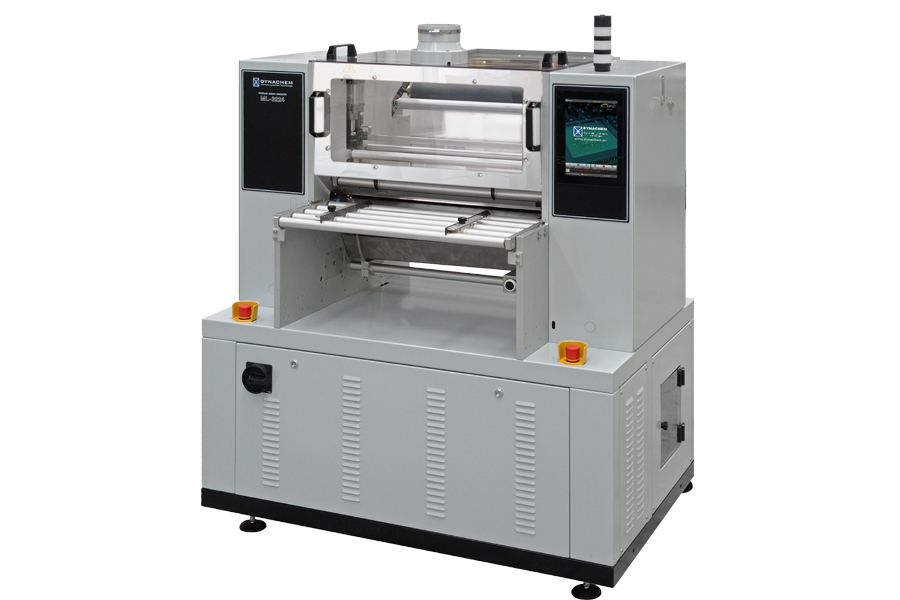

3224 MAINThe Manual Laminator ML 3224 is designed to provide a reliable lamination of dry film photoresist single and double-sided specially for printed circuit boards and chemical milling industries.
The new design of lamination rolls guarantees a high lamination pressure with good heating and uniformity.
The unit is pre-set either to install a DYNACHEM wet lamination module or Pre-heating touchless section.
In addition, the unit can be equipped with a Teknek cleaning unit.







Advantages

  • Solid design
  • Single and double-side lamination
  • Direct Drive Motor for lamination rolls
  • Anti-static bars system
  • Fine alignment device for dry film
  • Provided with 3-or 6-inch plastic adaptor for DFR rolls
  • Clean, oil-less compressed air system
  • Powerful vapour exhaust system
  • Exit panel temperature
  • Service by remote connection
  • PC touch screen display 10”
  • Thicker panel device up to 12,7 mm (0.5 in.) (option)
  • Wet module capability (option)
  • Pre-Heating section made by IR plates touchless design (option)
  • Cleaning unit Teknek SLIM model (option)
