Dynachem CUT SHEET LAMINATOR 1600-G

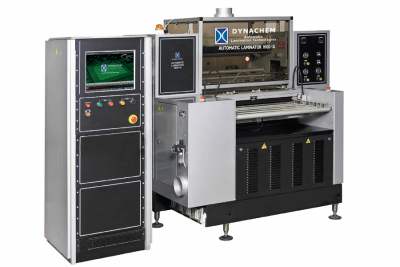

1600G 400x267The Automatic Cut Sheet Laminator model 1600 G is a solidly construction and very efficient machine. It has been specially designed to laminate a full range of PCBs.
The shear type cutting system allows to eliminate resist chips and the tacking design system guarantees a safer thin material handling.
The IR heating system guarantees a quick rump-up and stable lamination roll temperature.
The unit is provided with a data management system to supervise and statistically control the process.
With the new HMI the machine can be “Industry 4.0” certified.





Advantages

  • Suitable for innerlayers and rigid panels
  • High lamination pressure-by booster cylinders
  • Shear type cutting system to eliminate resist chips
  • Friendly operation – Allen Bradley PLC – operator interface in various languages
  • Output panel temperature detected
  • Tacking bars temperature controlled by thermoregulator
  • Soft contact centering unit
  • Preset for automatic in-line operation-easy handshake with other units
  • Preset for very thin layer device option
  • Preset for connecting internet line for remote monitoring and assistance
  • Statistic Process Control (SPC) – Easy data system proprietary software provided *

* Example: local and remote surpervision, management and monitoring data by PC, management of maintenance operations
