Dynachem SMARTLAM TAPE LAMINATOR MODEL 5500

SL5000PT 400x267The SmartLam Tape Laminator Model 5500 is a high–technology machine, specially designed to be very flexible in the lamination field.
The unit is equipped with exit clamping module, specially designed to handle very thin and flexible materials.
The machine is built in stainless steel to comply with the most stringent requirements of clean environment.
Most common applications are tape and dry film lamination in the PCB and Semiconductor industries.
The shear type cutting system allows to eliminate resist chips and the tacking design system guarantees a safer thin material handling.
The unit is provided with a data management system to supervise and statistically control the process parameters via proprietary software.




Advantages

  • Stainless steel construction-suitable for 1000 clean room operation;
  • Clamps system on the exit conveyor for panel extraction.;
  • Shear type cutting system to eliminate resist chips;
  • High lamination pressure controlled automatically by proportional valve;
  • Lamination rolls available in two size length 30” or 24” up request;
  • Vacuum by venturi system;
  • Friendly operation – OMRON PLC – operator interface in various languages by industrial touch PC/Display;
  • Equipped with brushless servo-motor;
  • Escada software for Statistic Process Control (SPC) – * Proprietary software;
  • ClampingUnit 510x341Driven rolls conveyor system by magnetic trasmission;
  • Expansion rolls system for dry film 3” or 6”;
  • MES connection capability;
  • Dry film roll off-set adjustment device;
  • Internet connection line for remote service;
  • Internal heater with three control lines for better temperature uniformity;
  • Dry film rolls tension control device;
  • Easier DF set up & maintenance;

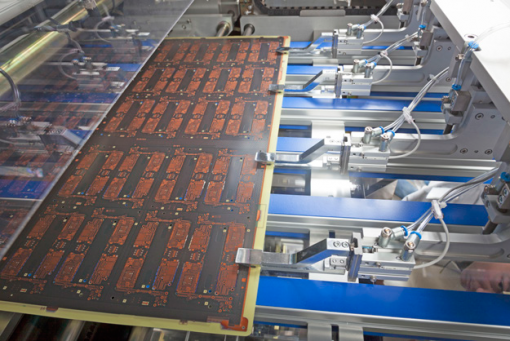

  • Pre set for Wet Lamination module (Optional);                                                                                                   Exit Clamping Unit for very thin and flex boards
  • Thin layer support for very thin panel (down to 25 um core);
  • Teknek Cleaning module installed into input conveyor, as option;
  • Barcode reader as option;

  • * Local and remote supervision, management and monitoring data by PC, management of maintenance operations;
    * automatic set-up of working parameters, barcode management, production logs, alarm recording, three users password levels.

 Optional:

Module for Wet Lamination Support:SmartLam Model 5200 Wet Module Device

SmartLam Model 5200 Thin Layer Support     Thin layer support:
      for very thin panel (down to 25 um core)
