Dynachem SMARTLAM MODEL 5200


DYN sl5200The SMARTLAM model 5200 Automatic Cut Sheet Laminator is a high–technology machine, specially designed to laminate a full range of PCB. This unit is capable of handling very thin layers and large heavy thicker panels. The machine is built in stainless steel mirror type to comply with the most stringent requirements of clean environment. The unit is provided with a data management system to supervise and statistically control the process parameters via proprietary software and it is pre-set for barcode reader.


Advantages

  • Stainless steel construction-suitable for clean room operation Class 1000
  • High lamination pressure controlled automatically by proportional valve
  • Lamination rolls available in two size length 30” or 24” up request
  • Vacuum by venturi system
  • Friendly operation – OMRON PLC – operator interface in various languages by industrial touch PC/Display
  • Equipped with brushless servo-motor
  • Escada software for Statistic Process Control (SPC) – * Proprietary software
  • Driven rolls conveyor system by magnetic transmission
  • Semi-Automatic cycle available
  • Expansion rolls system for dry film 3” or 6”
  • MES Capability
  • Exit Pneumatic Moveable device for very thin layers
  • Dry film roll off-set adjustment device
  • Internet connection line for remote control
  • Internal heater with three control lines for better temperature uniformity
  • Dry film rolls tension control device
  • Easier DF set up & maintenance
  • Pre set for Wet Lamination module
  • Thin layer support for very thin panel (down to 25 um core)
  • Teknek Cleaning module installed into input conveyor, as option
  • Barcode reader as option

* Local and remote supervision, management and monitoring data by PC, management of maintenance operations; automatic set-up of working parameters, barcode management, production logs, alarm recording, three users password levels.​

 Optional:

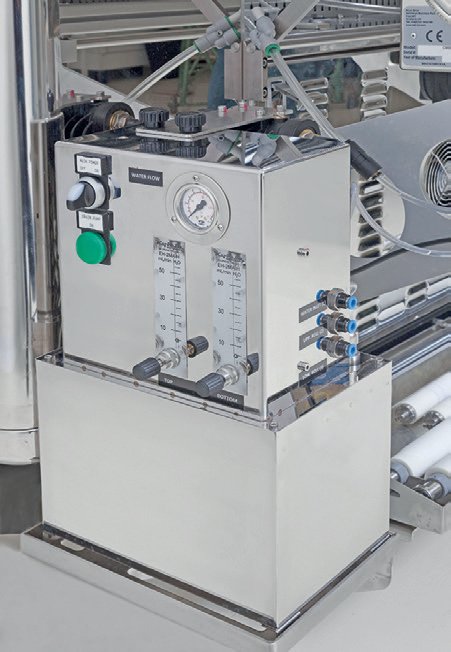

Module for Wet Lamination Support:SmartLam Model 5200 Wet Module Device

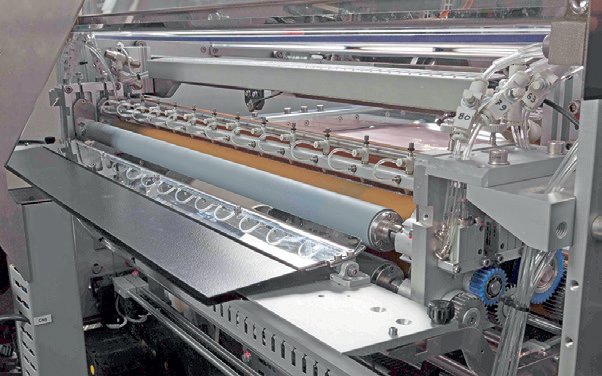

SmartLam Model 5200 Thin Layer Support     Thin layer support:
      for very thin panel (down to 25 um core)
