UNWIND-REWIND MODULE 6026

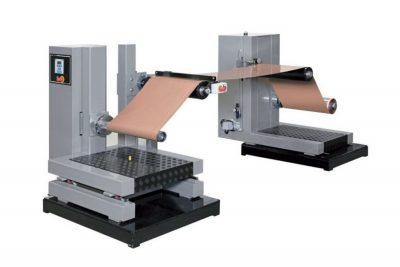

RTR 6026 copia 400x267The UNWIND/REWIND module 6026 has been designed for easy roll-to-roll materials (copper, metal, etc) process. The roll is unwound with a constant tension to keep it aligned before being rewound.
Advancement of the web is managed by a servo-motor installed in the rewinding system and the speed is controlled by an encoder.
The web alignment is controlled by an Ultra Sonic sensor in the Y direction and the tension is adjustable and controlled by an electronic device.
The new web is locked and sealed by the splice table with pneumatic hold down bars.





Advantages:

  • Single web roll shaft
  • Expanding shaft 3 inch. (6 inch. adaptor as option)
  • Web tension control device by electronic clutch
  • Splice Tables with double pneumatic hold down bars
  • Completely controlled by OMRON PLC
  • Clean, oil-less compressed air system
  • Diameter compensation device
  • Ultrasonic Edge guided system for UNWIND module only
  • End of web alarm (it can be set by meters)
  • Touch screen display 4”
  • Web tension dancing module (option)
