PRE-HEATER-8150

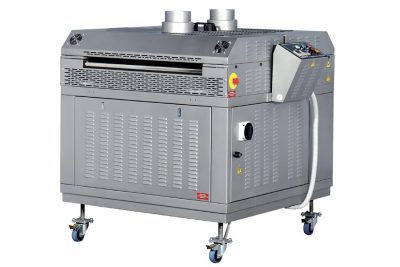

PH850The pre-heater model 850 is a compact, high-performance unit designed and built to heat the panels to be laminated with dry film photoresist, in the Dynachem Automatic or Semi-Automatic Laminators.
It is particularly suited to handle panels with large dimensions and increased thicknesses.
The heater does not come into contact with the panels, which avoids dust and chips sticking to them.







Advantages:

  • New stainless steel construction–suitable for clean room operation
  • New stainless steel construction–suitable for clean room operation
  • Very efficient heating system by 4 IR panels
  • Suitable for innerlayer or rigid panels–full range from 0,1÷12,7 mm (0.004÷0.5 in.) thickness
  • Panel sizes up to 787 mm (31 in.) wide

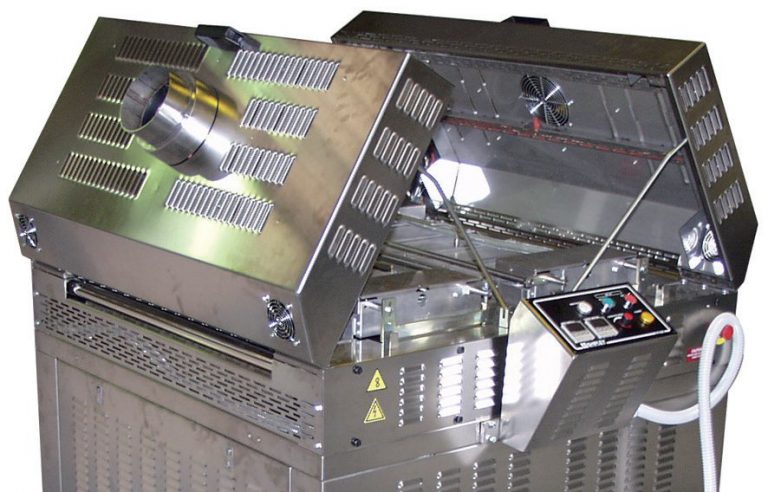

  • High transport speed up to 5 m/min.Pre Heater PH 850 Double IR Heating Chamber 768x492
  • Preset for automatic in-line operation–easy handshake with other units
  • Synchronized speed with Dynachem Automatic Laminators
  • Digital temperature control
  • Movable control panel
  • Automatic set-up of working parameters
  • Control box can be mounted to either side of unit
