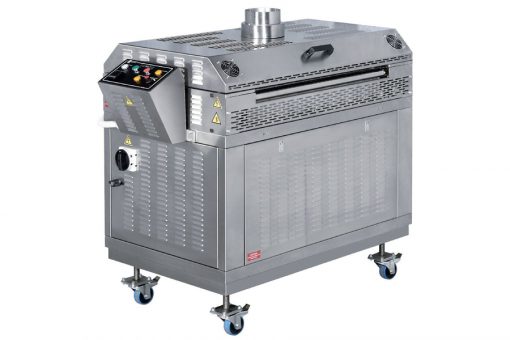

The pre-heater model 8030 is a compact, high-performance unit designed and built to heat the panel without contact before being laminated with dry film photoresist, in the Dynachem Automatic or Semi-Automatic Laminators.
It is equipped with a lightweight Radiant Heater Panel which ensures highly efficient radiating surface with a fast response.
Advantages:
- New stainless steel construction – suitable for clean room operation
- Very efficient heating system by IR Radiant heater with fast response
- Non-contact heater system ensures a no contamination-free panel
- Suitable for innerlayer or rigid panels–full range from 0,05÷5 mm (0.002÷0.2 in.) thickness
- Panel sizes up to 787 mm (31 in.) wide
- Adjustable conveyor speed and digital temperature control
- Possible to interface with a panel cleaning system
- Preset for automatic in-line operations – easy handshake with other units
- Movable control panel
- Convenient operator access
- Teflon conveyor belt (if required)
- Free maintenance
