Horizontal Loader + Stack Unloader

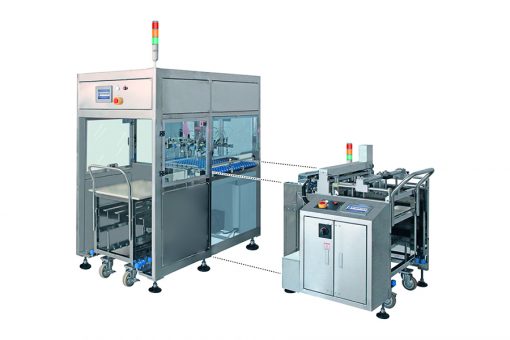

Assy 01 LU sito 510x340 1The Dynachem handling machines Horizontal Loader + Stack Unloader model WT are from a selected high quality OEM supplier, based in Taiwan.
The Horizontal Loader/Unloader model WT has been designed for automatically feeding  an automatic laminator, an automatic exposure unit, a cover sheet remover, etc.. with flexible or rigid panels.
The Stack Unloader model WT has been designed to accept and store flexible or rigid panels received from a line such as an automatic laminator, an exposure unit, etc.
Both machines can be equipped with a panel holder trolley to easily move  the panels from different working stations.





Advantages:

  • Construction in SUS 304
  • Suitable for inner layer or rigid panels
  • Centering unit
  • Completely controlled by PLC
  • Panel holder plate with multiple suction cups, easily registerable positions
  • Panel shaking
  • Thickness detector
  • Panel holder trolley
  • Basket for very thin layers (option)

Stack Unloader mod. WT

  • Construction in SUS 304
  • Suitable for inner layer or rigid panels-full range from 0,025÷3,2 mm (0.001÷0.125 in.) thickness
  • Centering unit
  • Completely controlled by PLC-Operator interface in English
  • Panel Stopper

DF Cutting Station:

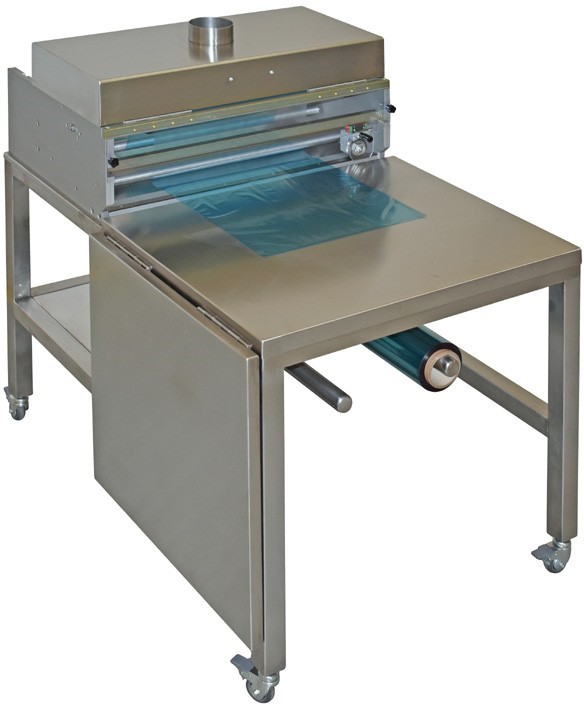

DF Table inThe DF Cutting Station has been designed and built by Dynachem to serve the Vacuum laminators units and it is available in two sizes 24” and 30” length.
The unit design allows the operator to easily cut any type of plastic/chemical film (i.e. dry film, solder mask film ABF, etc.) at the right length, while the lateral cutting device allows to obtian also the right width, if needed.
The round blade shape ensures a good quality of cutting.
The table is built in stainless steel and designed so as to avoid folding it complies with the most stringent requirements of clean environment.

  • Stainless steel construction-suitable for 1000 clean room operation
  • Round blade shape – no particles
  • Roll material off-set adjustment device
  • Dry Film lateral cutting
  • Preset to install a refrigerator
  • Easier DF set up & cleaning
  • ESD compliance

Dry Film Holder:

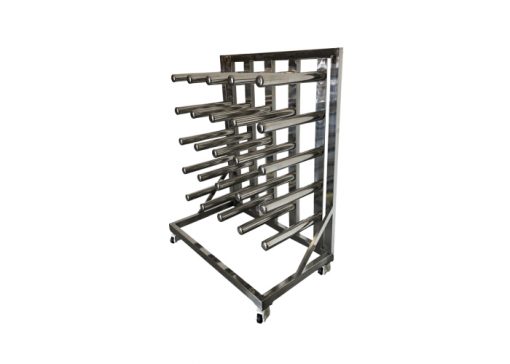

HOLDER3 copia 1 510x364Introducing our innovative Dry-Film Holder, designed to streamline your storage needs effortlessly. With the capacity to accommodate up to 25 dry-film rolls, this holder is a game-changer for efficient organization. Equipped with convenient wheels, it ensures easy mobility, allowing you to maneuver it effortlessly across your workspace. Crafted from high-quality stainless steel, it is specifically tailored for clean room operations, guaranteeing pristine conditions for your sensitive materials. Its dimensions of 1250x1580x640 mm provide ample space while maintaining a sleek and compact profile. Elevate your storage solutions with our reliable Dry-Film Holder, the epitome of functionality and durability.

  • Able to store up to 25 dry-film rolls
  • Wheels for easy moving
  • Stainless Steel suited for clean room operation
  • Dimensions (mm): 1250x1580x640

Dry Film Trolley:

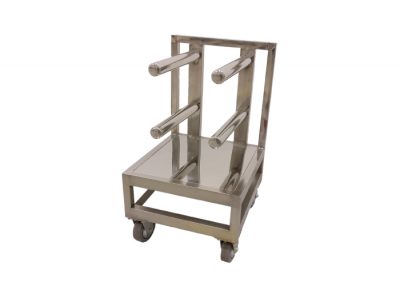

Holder trolleyIntroducing our Dry-Film Trolley, a versatile solution for efficient storage and mobility of dry-film rolls. With a capacity to hold up to 4 rolls, this trolley optimizes space while ensuring accessibility to your materials. Equipped with sturdy wheels, it enables easy transportation, allowing you to effortlessly maneuver it within your workspace. Crafted from high-grade stainless steel, this trolley is specifically designed for clean room operations, ensuring a hygienic environment for your sensitive materials. With dimensions of 600mm in width, 550mm in length, and 1040mm in height, it offers a compact yet spacious storage solution. Upgrade your storage system with our Dry-Film Trolley, combining functionality, durability, and convenience.

  • Able to store up to 4 dry-film rolls
  • Wheels for easy moving
  • Stainless Steel suited for clean room operation
  • Dimensions (mm):  Width 600mm ; Length 550mm ; Height 1040mm

High Temperature release Film:

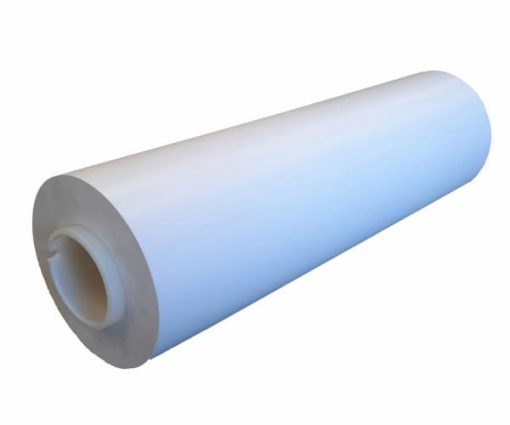

PET ROLL copia 1 510x425Introducing our cutting-edge High Temperature Release Film crafted from FEP (Fluorinated Ethylene Propylene). Engineered with exceptional durability and remarkable conformability, this film stands out for its direct contact capabilities with laminates. Experience the ease of pulling it off your part post vacuum bagging, thanks to its superior non-stick performance. Unlike conventional release films, our high elongation release films boast unparalleled pliability, making them ideal for applications even in extreme temperatures up to 200 °C.
