Dynachem VA 7224-HP7


HP7The Vacuum Applicator model VA 7224 HP7 is a stand-alone unit, designed and built to ensure complete elimination of air from the surfaces, as well as perfect encapsulation of the traces.
This unit can be used for the lamination in printed circuit boards, IC substrates, semiconductors, wafers, solar cells industries.
It has been developed for simultaneous application on both sides and can achieve high lamination quality and excellent conformation to fine patterns with dry film photoresist, dry film solder mask or ConforMASK, dielectric film, cover layer application.
The machine ensures a perfect adhesion of the product an that there are no air bubbles by employing heat, vacuum and hight lamination pressure.
The tool employs heat, vacuum and high lamination pressure.
The machine can be provided with a data management system to supervise and control all process parameters via an appropriate software and it is pre-set for barcode reader.



Advantages:

  • Stainless steel construction-suitable for clean room operation
  • Dynamic and Static high lamination pressure

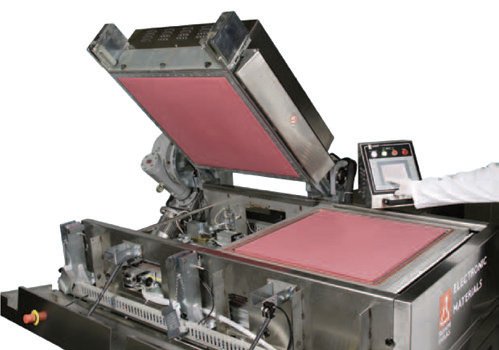

  • Vacuum Applicator VA 7224 HP7 Upper Plate OpeningHigh lamination pressure adjustable
  • High temperature RTR release film kit (option)
  • Maximum lamination temperature 180°C (356°F)-platens’ temperature is individually controlled
  • State-of-the-art vacuum technology
  • Completely controlled by Omron PLCoperator interface in various languages by touch screen 7” display
  • Comfortable access to the vacuum chamber for cleaning or maintenance operations
  • Upper plate opening by motor
  • Oil-free for high lamination pressure
