Dynachem SA-3224

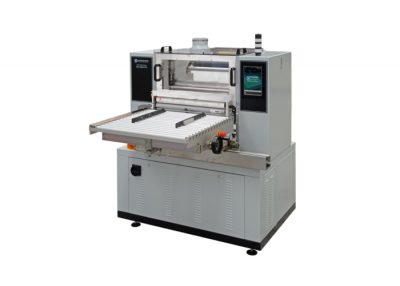

3224SAThe Semi-Automatic Laminator SA 3224 S1 is designed to provide a reliable lamination of dry film photoresist, tape material, etc., single and double-sided specially for printed circuit boards and chemical milling industries.
This unit is equipped with entrance conveyor rolls and soft pneumatic centering unit to handle an automatic panel feeding.
The new design of lamination rolls guarantees a high lamination pressure with good heating and uniformity. The unit can be equipped either with the Dynachem wet module or the Pre-Heating module section. In addition, it can be equipped with a Cleaning unit Teknek SLIM model as well.









Advantages:

  • Solid design
  • Single and double-side lamination
  • Direct Drive Motor for lamination rolls
  • Anti-static bars system
  • Fine alignment device for dry film
  • Provided with 3-or 6-inch plastic adaptor for DFR rolls
  • Clean, oil-less compressed air system
  • Powerful vapour exhaust system
  • Service by remote connection
  • PC touch screen display 10”
  • Thicker panel device up to 12,7 mm (0.5 in.) (option)
  • Wet module capability or Pre-Heating section (option)
  • Cleaning unit Teknek SLIM model (option)
  • Exit panel temperature (option)
