Through Hole Via Filling

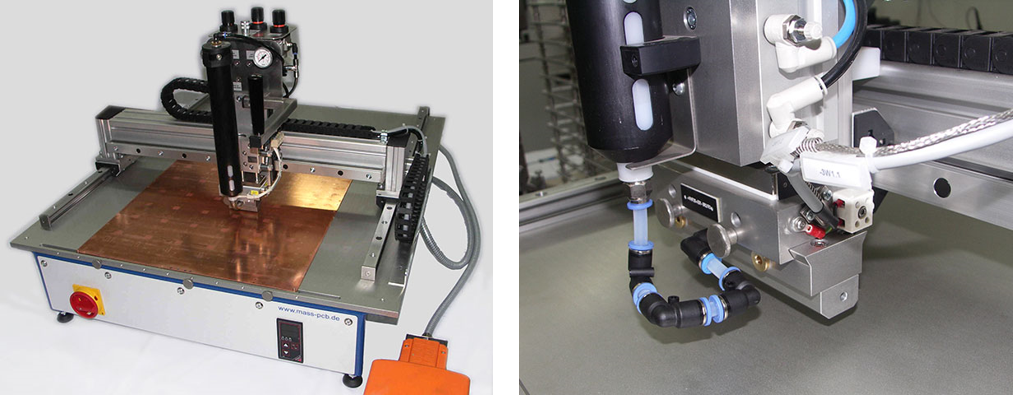

This horizontal machine is designed for manual filling of through holes in printed circuit boards with conductive or non-conductive paste:
Application:
- Partial filling of through holes.
- Can be used with conductive and non-conductive pastes.
- Paste stored in refillable cartridges.
- All movements performed manually.
- Paste pressure and button pressure can be adjusted.
- Holes with a large AR of 1:40 can be filled safely at high paste pressure.
- Optional heated fill head available for conductive pastes.
- circuit-board format of up to 610 x 762mm (24x30”)
