ATG Fixture based test systems


For high volume electrical testing with integrated automation

These combine easy and fast fixture building, simple operation and high throughput. Optical alignment and micro adjustment provide the functionality required for testing small pad sizes and dense structures. The option to use alternatively Dedicated fixtures e.g. for Kelvin test of HDI PCB on the same systems lets our customers always choose the most cost-efficient technology.

We offer highly precise compact Step Tester with octal density.

Our machine combines easy and fast fixture building, simple operation and high throughput. Optical alignment and micro adjustment provide the functionality required for testing small pad sizes and dense structures. The option to use alternatively Dedicated fixtures e.g. for Kelvin test of HDI PCB on the same systems lets our customers always choose the most cost-efficient technology.

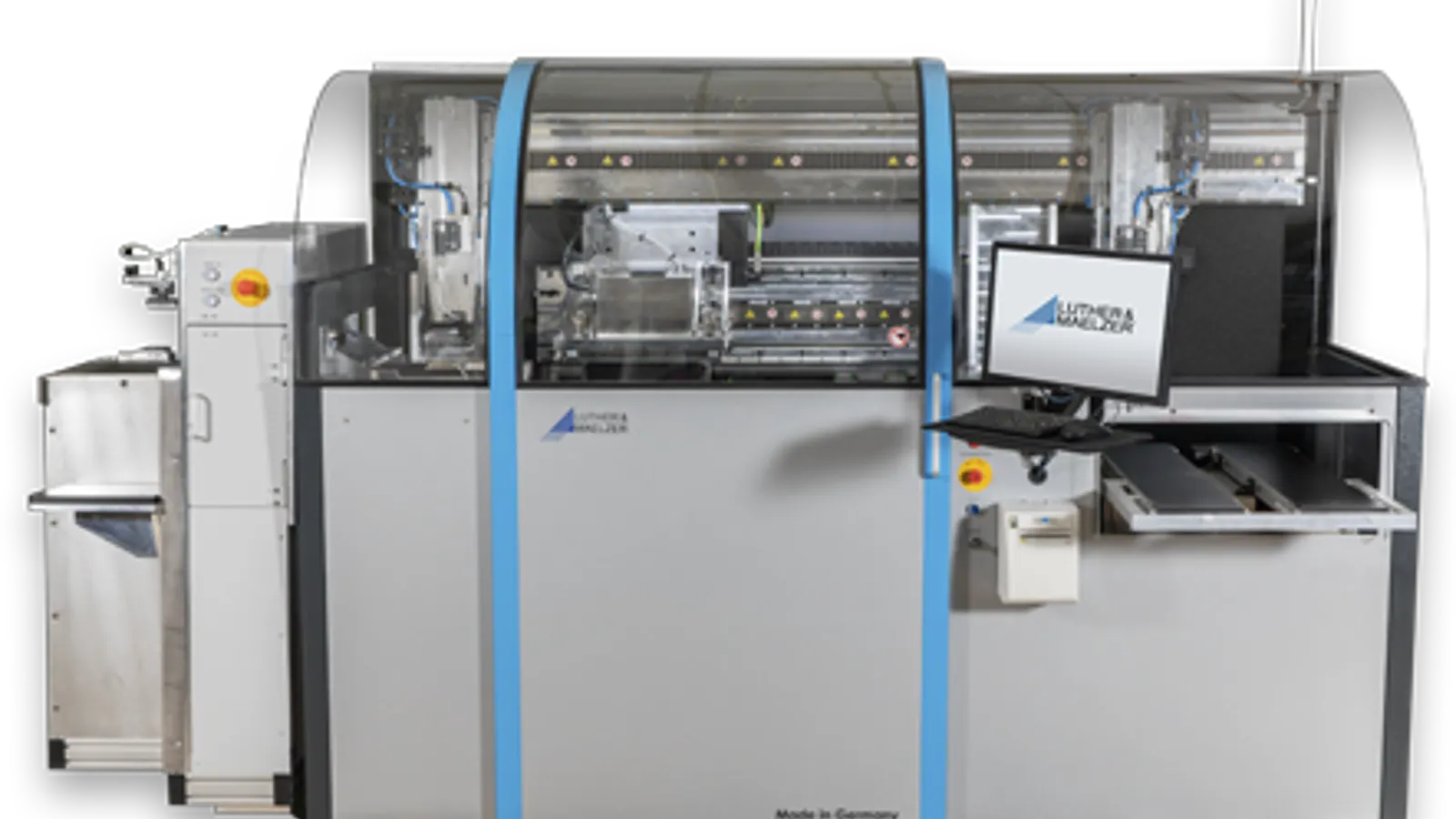

lm1000 product image

LM1000

The LM1000 is a highly precise compact step tester for the electrical test of HDI bare boards in mass production.

 Description

The LM1000 is a highly precise compact step tester for the electrical test of HDI bare boards in mass production.

The solid granite frame provides the highest accuracy. Two high-resolution cameras (top and bottom) scan the PCB and enable the automatic micro-adjustment of the fixtures.

The dual shuttle and a dual vacuum grabber – driven by fast linear motors – provide high throughput multi-tasking product handling. The machine runs either with universal fixtures up to 6.4″ x 9.6″ test area or with a dedicated fixture.

This gives the customer the possibility to choose the best price-performance technology for the specific application without being limited by the equipment.

Key benefits

Fully automated step-tester for universal and dedicated fixtures

Test area of 9.6” x 6.4” (244 mm x 164 mm), max product size 400 mm x 300 mm

Double Shuttle for highest throughput
Granite base to ensure highest accuracy
Double-sided high-resolution camera system
Automatic micro-adjustment
High speed Kelvin 4-wire test
Cleaning Station
Extended inspection methods
Repair s/w with barcode support
Specification

Max. # Test Points

49,152 per side (OD 35 mil)

Continuity test

30 Ω - 10 KΩ

Short test

100 KΩ - 100 MΩ

Test area

244 x 163 mm (9.6" x 6.4")

Isolate Voltage

35 V – 250 V DC

4-wire Kelvin

Range 0 mΩ - 50 KΩ  with a tolerance

(± 3 mΩ), up to 1.500 measurement/sec

(depending on accuracy and board size)
Extended inspection methods Leakage, Spare, µShort, 4W open, 4W resistor, measurement of resistor divider ratio
