Productivity:
8 test head system with linear drive technology
Stability:
Universal shuttle system for product size up to 915 x 660mm (36” x 26”)
Flexibility:
Advanced back drill and active diode test capability
Description

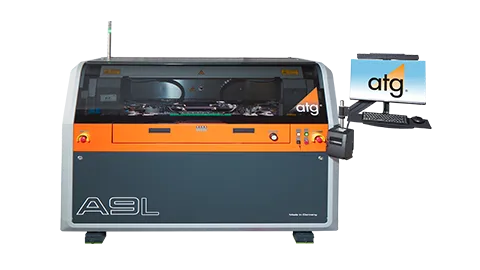

The A9L is based on our A9 test head technology with a new powerful drive technology and granite base to ensure high accuracy.
The universal shuttle system including tension option supports product sizes up to 915 x 660mm (36” x 26”) with an active test of 889 x 610mm (35” x 24”)
The A9L has an outstanding test speed of 25 contacts per second per test head and improved motion control with highest accuracy for advanced test functionalities like BackDrill test and active component testing.
Key benefits
Granit base in combination with state of the art linear motor drives for X-, phi- and Z-movement
Outstanding test speed of 25 contacts per second per test head. Improved motion control with highest accuracy for advanced test functionalities like BackDrill test and active component testing.
Specifications
|
8 test heads |
|
|
Linear motor drives for X-, phi- and Z-axis |
|
|
Granit base |
|
|
Max. test area |
890 mm x 610 mm (35" x 24") |
|
Max. product size |
915 mm x 660 mm (36" x 24") |
|
Test speed |
up to 220 TP/sec (depending on test method) |
|
4high-resolution color XGA-cameras |
|
|
Smallest pad/pitch A9 |
50 µm*(2 mil) / 100 µm (4 mil) (* glass calibration) |
|
Soft touch contacting |
|
|
Micro short detection (MSD®) |
|
|
Pneumatic clamping / tension frame |
