a9al 442x442Productivity:
Fully automatic tester with highest throughput

Stability:
Single Shuttle system with tension and clamping function

Flexibility:
Supports automatic slip-sheet handling

Description

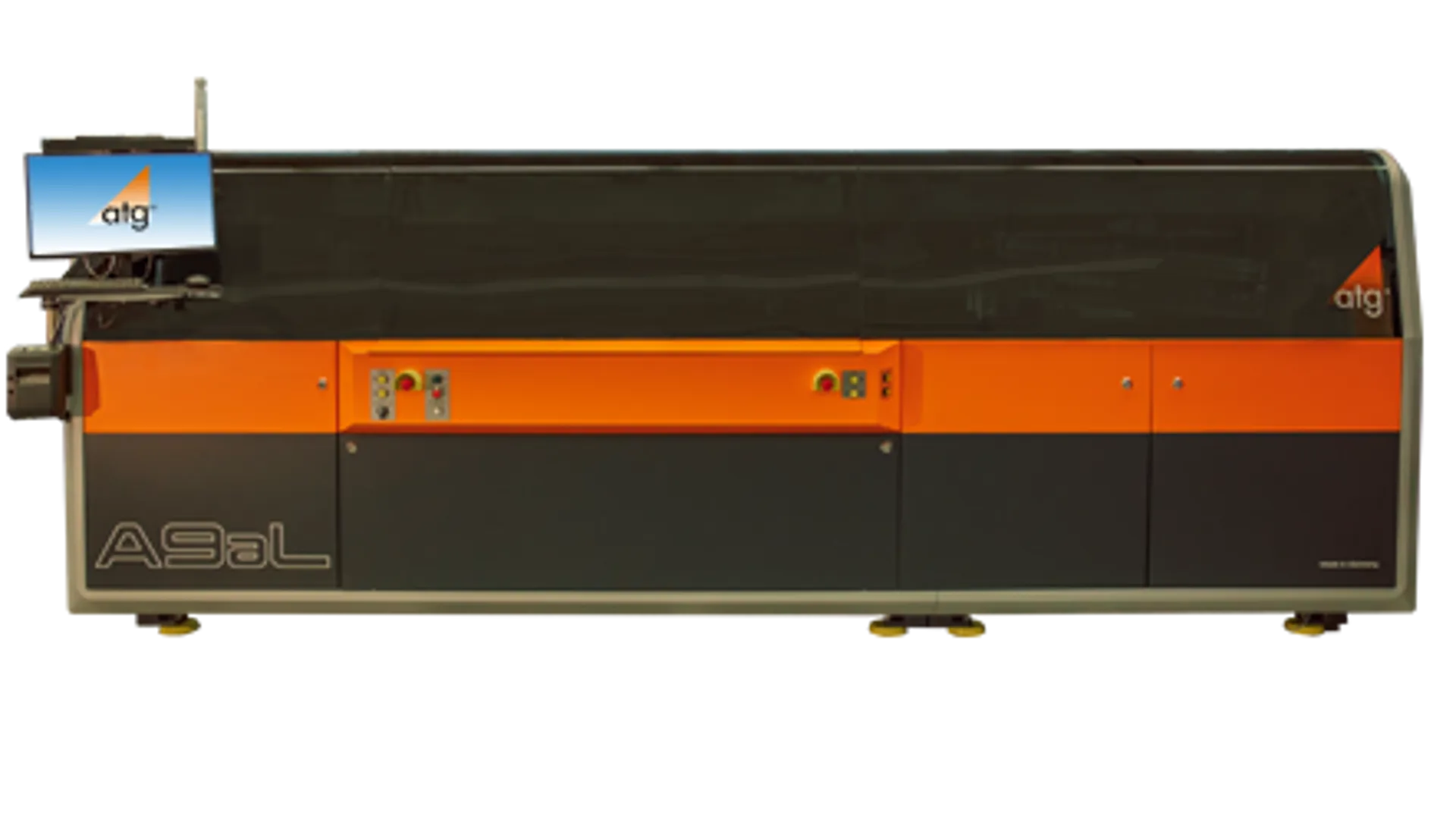

The fully automated A9aL, 8-head, double-sided, high-speed, high-accuracy flying probe test system features state-of-the-art technology.
The electrical test system enables to test of the latest ultra-fine designs while helping to reach industry-leading automation goals.

A9aL can test pad sizes down to 50 microns and is capable of testing products up to a size of 25” x 21” in automation and manual mode. The A9a eliminates limitations due to test point density or fine-pitch contacts and features embedded component test, 4-wire Kelvin measurement capability with an accuracy of +/- 0,025 mΩ +/- 2%, HiPOT, and latent testing.

Test speeds of up to 220 measurements/second in combination with a “lights-out” automated handling solution enable the test of larger production runs. A key feature of the A9aL is a universal tension and clamping shuttle system, which supports bended and flexible production panel test.

Key benefits

Pick and Place automation for products in final a product stage;

Capability to test production panel size up to 24" x 21" (660 x 610mm) in manual mode
Best price / performance ratio
Latest generation in advanced technology
8 ultra light carbon fiber test heads
Fully automatic “Lights-out” operation
High performance linear motion
Granit base for high accuracy and repeatability

Specifications



8 test heads



Linear motor drives for X-; phi- and Z-axis



Max. test area auto mode

 610 mm x 510 mm (24" x 20")

Max. test area manual mode

 610 mm x 510 mm (24"x 20")

Max. product size manual mode

 635 mm x 535 mm (25" x 21")

Max. product size auto mode

 635 mm x 535 mm (25" x 21")


Throughput up to

 20 production panel per hour (average 15.000 test points per panel)
Options Barcode label, Pen Marking Unit for each individual image, automatic tension bar, automatic sucker unit

Fully automated test system with loader and separation of good and bad boards
