A7 XW Pro

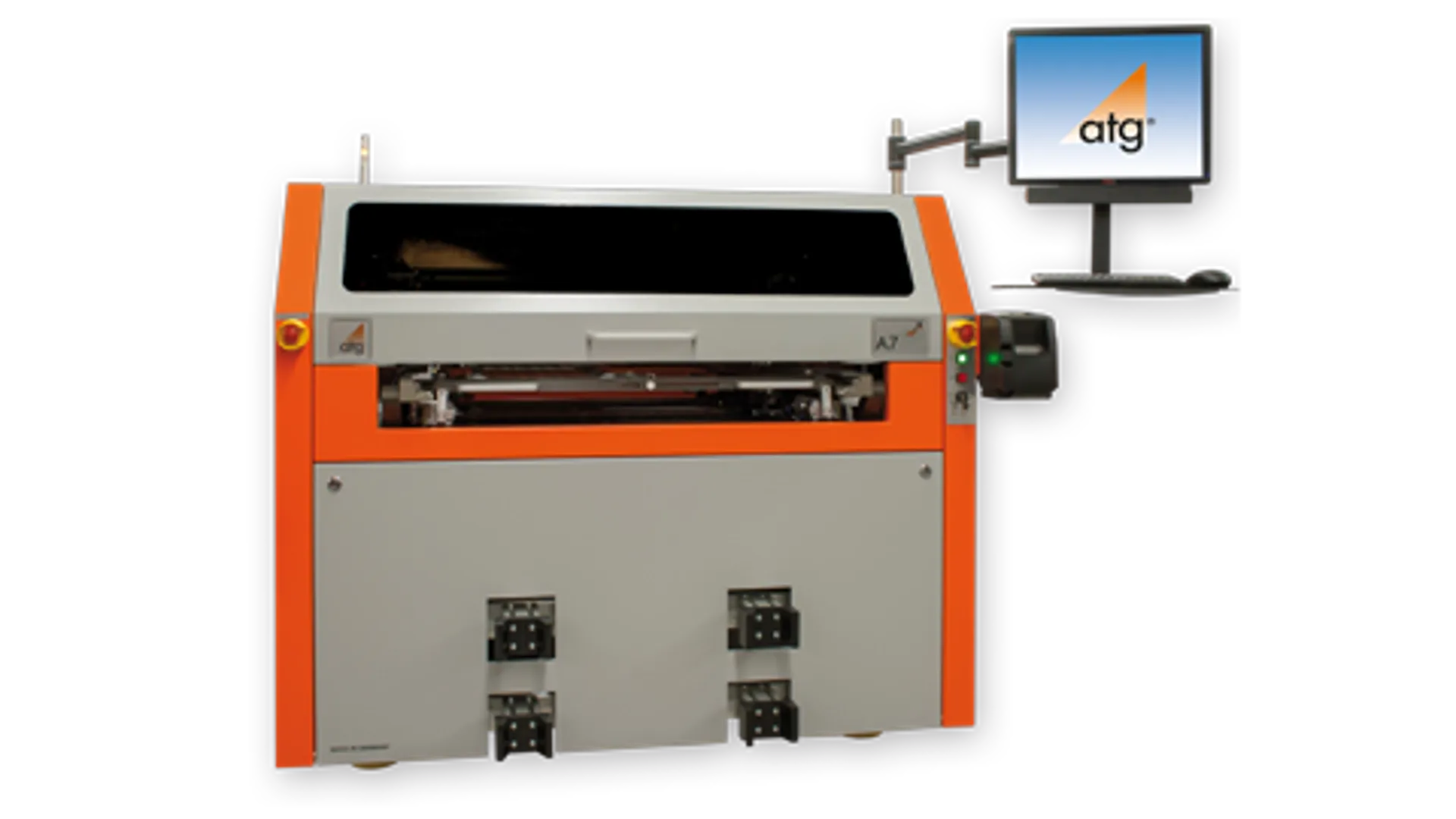

a7 xwpro front 16 9Productivity:
System with up to 24 test heads

Stability:
Prepared for handling rigid and extreme heavy boards

Flexibility:
For products up to 60'' x 40'' board size

Description

Our unique rail concept allows a high test head density on even the largest boards, minimizing the test time for large products with high test point counts. For oversized products with test areas larger than 610 mm x 1000 mm we offer customized oversized systems with 16, 20 or 24 test heads and optional with a wide body. This allows test areas up to 1000 mm x 1500 mm. And all this with A7 Pro performance.


Key benefits

up to 24 test heads for test areas of 39.4" x 59" (1000 x 1498.6mm)
The system combines outstanding test speed and high accuracy, while at the same time making available the broad range of test functionality typical for atg test systems.

Specifications

Up to 24 test heads



Linear motor drives for X- and Z-axis



Stepper motor technology for phi-axis



Max. test area

Up to 1000 mm x 1500 mm (39.4" x 59.0")

Max. product size

On request
