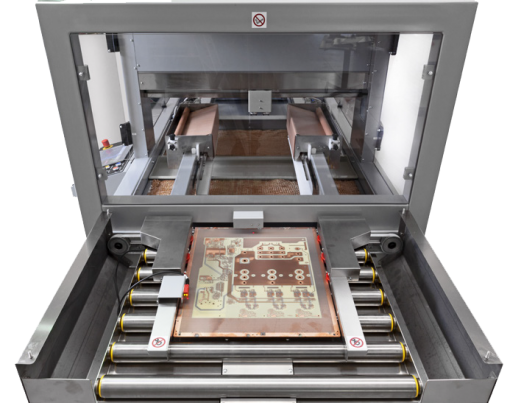

Automatic Lamination Technologies has developed the SmartSpray Series A24 setting a new trend in PCB Soldermask spraying technology by horizontal coating.
The board detection system allows automatic spraying of single or double sides.
The innovative solution of our nozzles provides advantages in precision film coating application on circuit boards. It is ideal for small to medium size printed circuit board manufacturers that make frequent product changeovers.
Our range of spray systems accommodates most PCB manufacturer’s needs from stand-alone to in-line systems.
We offer the utmost performance in quality, consistency and production speed for all types of solder mask, coatings and substrates.
Advantages:
- Comply with industry 4.0
- Universal (Left to Right and Right to Left)
- Simple, Easy & Quick maintenance
- Single or double sides process
- High precision guns transmission system
- Pre-Heating device for ink stability
- Heating spray circuit
- Automatic panel width reading
- Input conveyor with centering unit
- Spray uniformity +/- 5 μm dry
- HMI PC display touch 15” wide
- Pre set for barcode reading
- Cleaning guns section
- Lateral Roll to Roll paper protection system
- Automatic color change for one channel (option)
- Scales for ink alarm (option)
- Weight calibration function
- Spray gun process controlled by algorithm
- Exhaust box with carbon filters (option)
