VF Taping Twin


A variety of Taping solutions available

The special construction of the taping head mechanism enables a consistent and tight tape to keep the entry material flat to the panel surface below

Single Head Taping machine (Mechanical operation - Entry material on top of drillstack)

  • Taping Single topThe stack is placed against the standing out guide and pushed inside manually for the taping to take place

  • Single and Double Spring load
  • Entry material on top
  • Table Top Model
  • Adjustable Tape Length on Entry Material
  • Variable Tape Width
  • Weight 31 lbs (14 kg)
  • Dimensions L 550 x (D) 300 x (W) 420 mm (L21,7” x D 11,8” x W 16,5” )

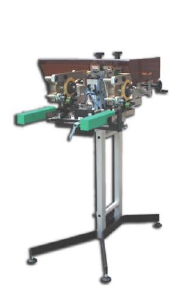

Single Head Taping machine (Pneumatic operation - Entry material on bottom of drillstack)

  • Taping Single BottomThe stack is placed on the plastic guides and pushed against the sensors that activate the cycle.
    A carriage equipped with the taping device comes forward and terminate the operation.

  • Entry material on bottom
  • Table Top Model
  • Adjustable Tape Length on Entry Material
  • Variable Tape Width
  • Weight 55 lbs (25 kg)
  • Dimensions L 37,4” x D 13,4” x W 20,5” (950 x 340 x 520 mm)
