VF Pinning Twin


Drillstack preparation

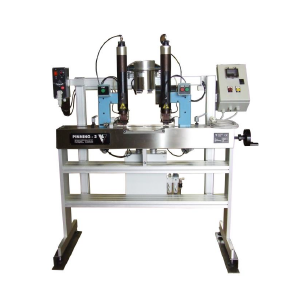

Pinning TwinThe Multi Layer boards are positioned on the working table and coinciding the holes on the centring pins. The pinning heads down stroke, the pins insertion are activated from two buttons which must be pushed simultaneously. After the return of the centring pin under the working table is possible unload the pinned stack and the machine will be ready for the next cycle.








Machine Features

  • Semi automatic double head MLB Pinning Machine
  • Including vibration for Pin Feeding
  • Pinning of Pre-existing Holes
  • Pin length:                                                       0,63” - 0,79” (16 - 20 mm)
  • Pin diameter:                                                  0,12” - 0,125” (1/8”) - 0,158” - 0,197” (3,0 - 3,175 - 4,0 - 5,0 mm)
  • Working Range:                                             700x700mm (27,6” x 27,6”)
  • Weight:                                                            265 lbs (120 kg)
  • Dimensions:                                                   (L) 720 x (D) 1500 x (H) 1770 mm (L 28,3” x D 59,1” x H 69,7” )
  • Pins automatic feeding
  • Holes/pins distance with continuous regulation by hand wheel
  • Air pressure feeding group extremely accessible for inspection and cleaning

Working Cycles

  • Pinning
