VF Combi-22


Drillstack preparation

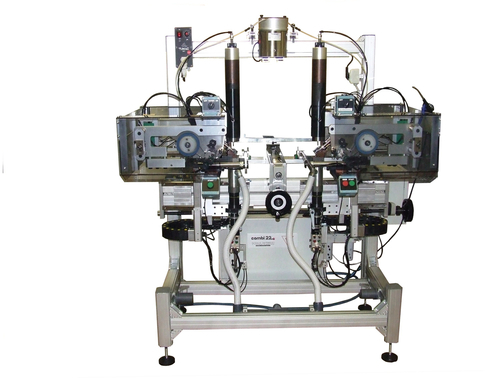

Combi 22Pinning & Taping machine for stack preparation before the PCB drilling process. Executes simultaneously the pinning and taping operation on the shortest edges (pin edges) and with a second cycle only the taping on the longest edges.








Advantages

  • Solidity
  • High Productivity
  • Simple setup : 3 hand wheels for pin distance (X axis), stop on end on the Y axis and distance between tapes with digital measure reading.
  • Only pneumatic operation (high reliability)

Operation

  • Drilling, Pinning & Taping simultaneously on pin sides
  • Additional Taping only on long sides
  • Spindle/Cylinder positioning by Handwheel using accurate Mechanical Counters
  • Pneumatic securing of Spindle/Cylinder position
  • Hydraulic Brakes for Z-Axis damping feed (fast approach, regular feed, no exit burr)
  • Automatic Pin Feed
  • 4 Taping Heads (2 left, 2 right) with adjustable distances betweentapes
  • Adjustable Tape Length on Entry Material

Machine Features

  • Max machine dimension:                               1760 x 1450 x 750mm
  • Min. machine dimension:                               1300 x 1450 x 550mm
  • Pins feeding:                                                     Automatic
  • Pins length:                                                       18 - 20mm
  • Pins diameter:                                                   3.00 - 3.17 - 4.00 - 5.00mm
  • Stack dimension:                                              Min 280 x 350mm - Max 720 x 600mm
  • Holes distance and Y position stop with continuous regulation by hand wheels (easy measure reading by mechanical counters).
  • Hydraulic brakes for infeed absorber (quick approaching, regular feed and absence of burr on return feed).
  • SUGINO drilling units (High quality supplier and worldwide service)
  • Air pressure feeding group extremely accessible for inspection and cleaning

Working Cycles

  • Drilling – Pinning (D/S PCB)
  • Pinning – Taping (multilayers)
  • Taping
