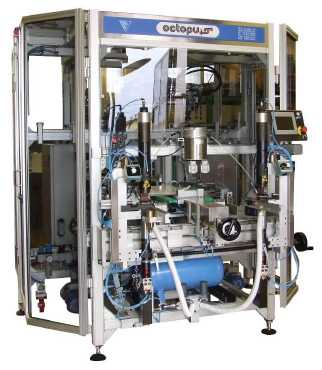

VF Octopus


High productivity machine for stack preparation before drilling & routing process

OctopusExecutes automatically and at the same time the pinning, taping and unloading (stacking) operations on the PCB panels ready to be drilled.

The operator has to select the panels, put them together on the working table against the mechanical references and push the "START" button. Every 80/90 cycles the operator has to change the pallets with the stack already made ready for drilling.The setup is very easy and friendly: three hand wheels for pin distance (X axis), stop on end on the Y axis, distance between tapes with digital measure reading.
Small foot print and used space: 80-90 stacks superimposed one to the other.




Operation

  • Drilling, Pinning & Taping simultaneously on pin sides
  • Additional Taping only on long sides
  • Spindle/Cylinder positioning by Handwheel using accurate Mechanical Counters
  • Pneumatic securing of Spindle/Cylinder position
  • Hydraulic Brakes for Z-Axis damping feed (fast approach, regular feed, no exit burr)
  • Automatic Pin Feed
  • 4 Taping Heads (2 left, 2 right) with adjustable distances between tapes
  • Adjustable Tape Length on Entry Material

Machine Features

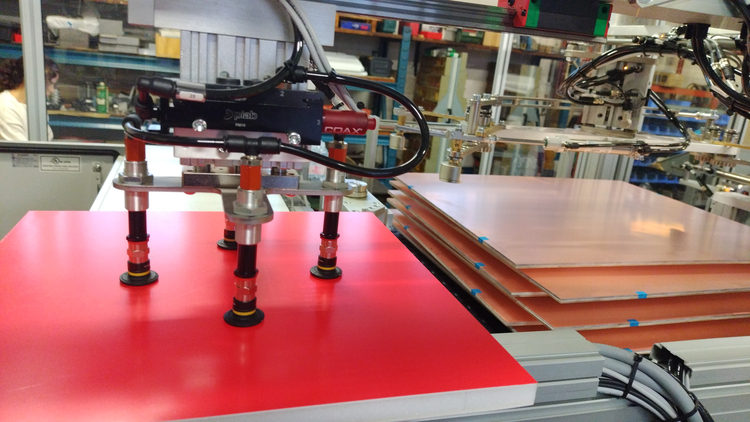

  • Octopus internalMachine dimensions:                 2000 x 2150 x 2300mm
  • Weight:                                         1000kg
  • Stack dimension:                        Max. 670 x 535mm Min. 350 x 380
  • Pin lengths:                                  16-20mm
  • Pin diameters:                             3.00 - 3.175 - 4.00 - 5.00mm
  • Installed power:                          1Kw
  • Air consumption:                        11NL/S
  • Productivity:                                 up to 180 stacks / hour

Programmable Application Sequences

  • Drilling – Pinning – Taping – Stacking
  • Pinning – Taping – Stacking (multilayers)
  • Taping – Stacking
  • Drilling – Pinning D/S PCB with manual unloading (like the standard Pinning machine, Spinamatic)
  • Pinning with manual unloading (multilayers)

Automation

Optionally, the Octopus can be equipped with full material dispensing automation. Contact This email address is being protected from spambots. You need JavaScript enabled to view it. for further info
