Innovative Multi-spectrum Illumination

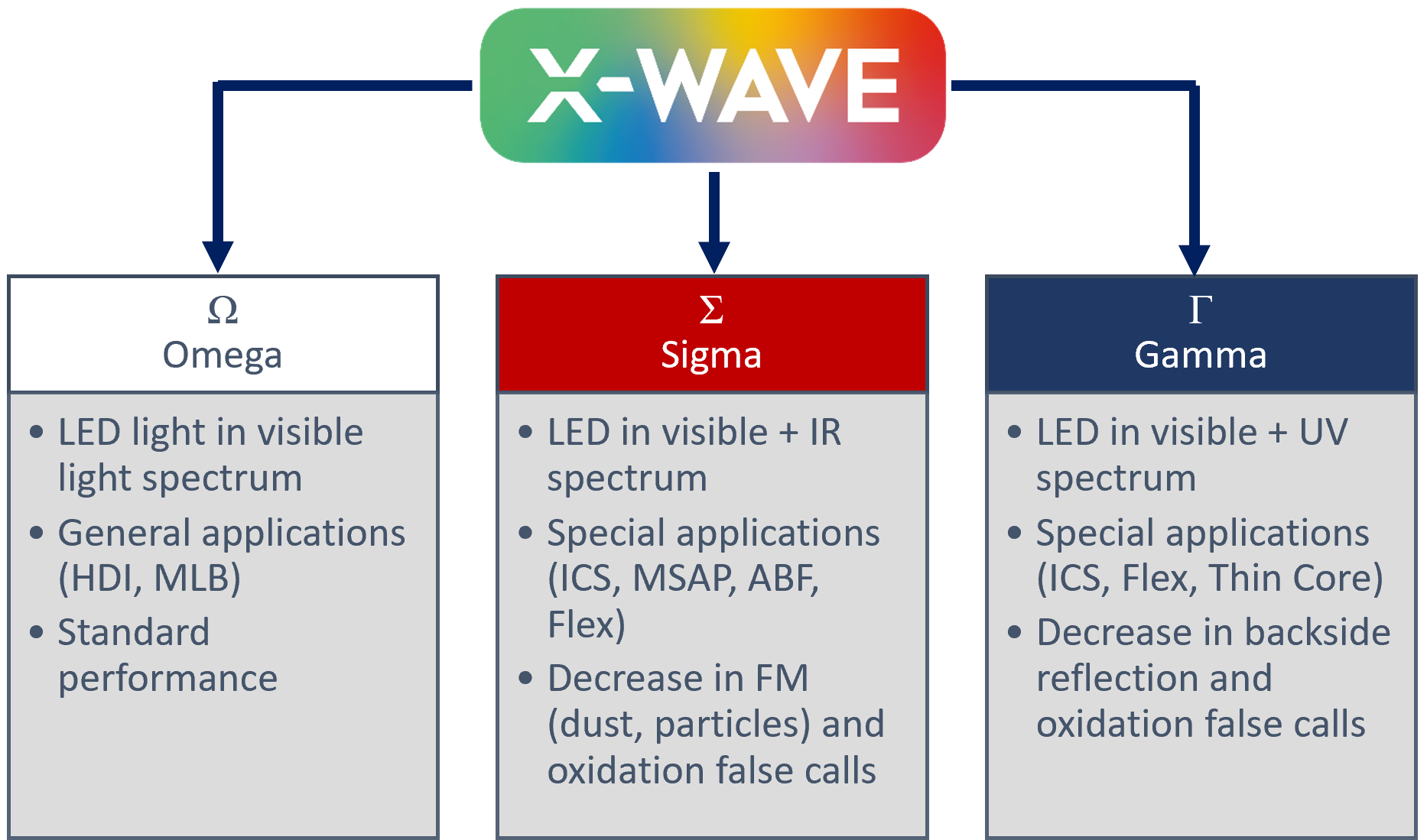

With the introduction of the XWAVE Illumintation technology, CIMS has set the standard to an unrivalled level for illumination of all possible PCB &, IC Substrate technology levels. XWAVE is available in three different levels:
- Ω Omega - For standard AOI PCB applications;
- Σ Sigma - For the lowest contrast PCB material & Fine Line applications;
- Γ Gamma - For IC Substrate & thin film technology applications.
µMicro Illumination

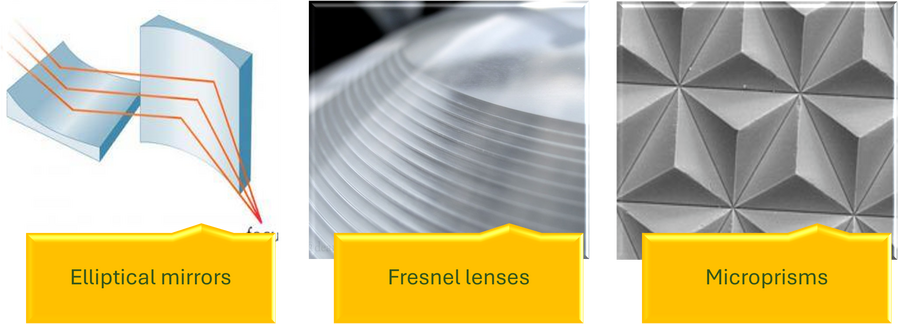

cutting edge illumination technology based on:
- Elliptical mirrors - Redirect and focus light on the object;
-
Fresnel lenses - Steer the light beam to control angular light coverage;
-
Microprisms - Fine-tune the light beam width and position

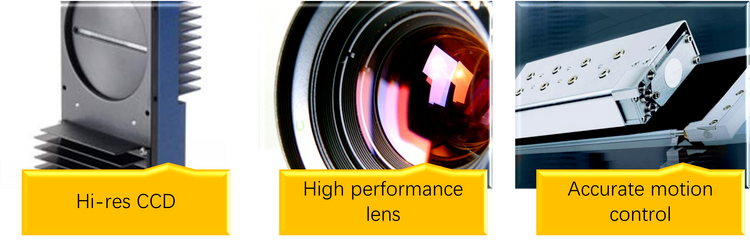

High Quality Optics
High image quality and stability are achieved by:
